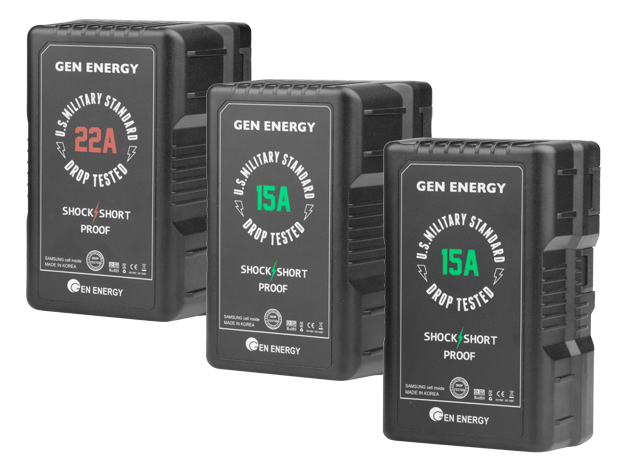

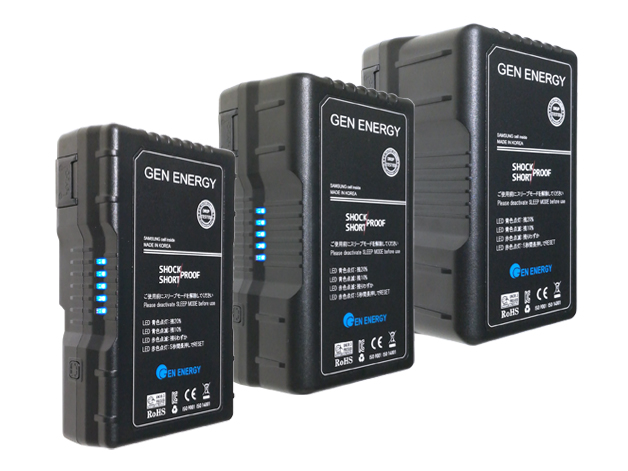

V-MOUNT BATTERIES

⋅ World's first U.S Military Standard Drop Test PASSED.
⋅ Short-proof v-mount batteries.
⋅ All kinds of lightings with v-mount plate can be powered safely and stably.
⋅ Minimizing the heat through main output with low impedance and low resistance by large pattern.

Spec.
discharge Product ID Capacity voltage Charge A/V D-Tap Weight
22A G-B100/290W 22A 20Ah 14.4V 6A / 16.8V Max.12A 1,520g
15A G-B100/290W 15A 20Ah 1,520g
G-B100/195W 15A 13.5Ah 1,070g
12A G-B100/290W 20Ah Max. 7A 1,520g
G-B100/195W 13.5Ah 1,070g
G-B100/160W 11Ah 1,070g
G-B100/98W 6Ah 3.5A / 16.8V 620g

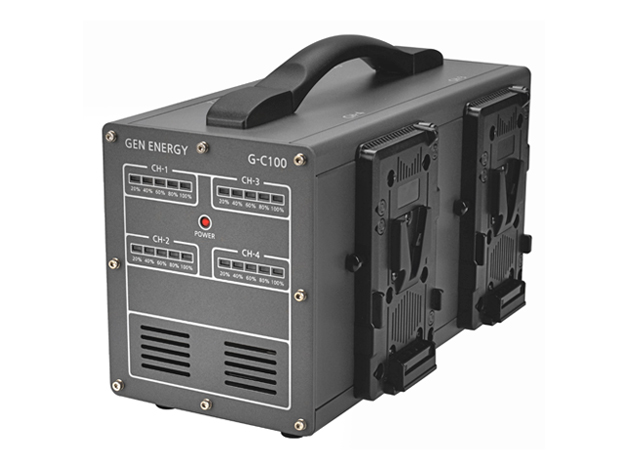

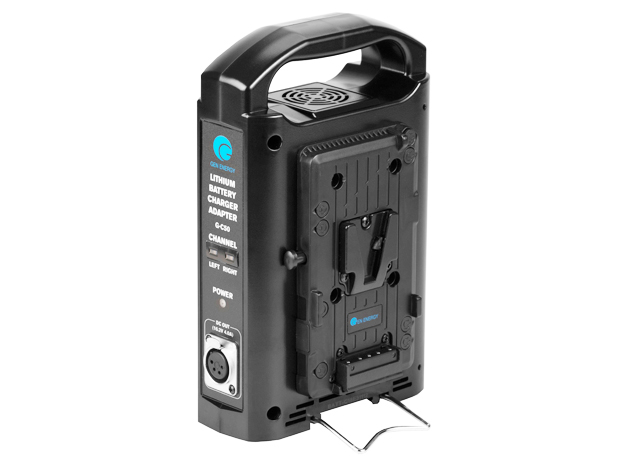

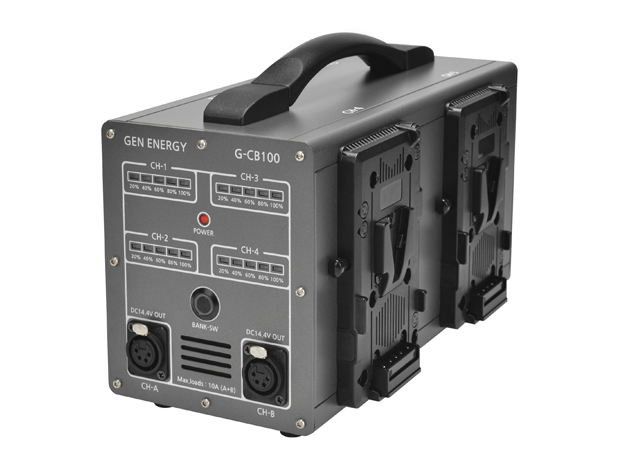

CHARGERS

⋅ 6A, 4ch simultaneous charger ( Dual SMPS built-in )
⋅ 6A or 3A supplied automatically according to capacity.
⋅ No. of LEDs turned on indicates the capacity during charging and discharging.

Spec.
Product ID G-C50 G-C100 3.5A G-C100 G-CB100
Dimension 23 x 14 x 60cm 13x 16 x 29cm
Weight 1,000g 4,000g
Battery Slot 2 4
AC In 100-240V/50-60Hz, Max.8A
Power Consumption 480W
Charging current 2.6A 3.5A 6A (3A, Only 98W)
Charging time 290W=9h
195W=6h30m
160W=5h30m
98W=3h30m		 290W=7h
195W=5h
160W=4h
98W=3h 		290W=4h50m
195W=3h40m
160W=3h20m
98W=3h20m
DC Port XLR 4Pin x 1 Not available Not available XLR 4Pin x 2
Power station out Not available 12V-16V, Max.10A
DC Output 16.2V Max.4A 14.4V, Max.10A

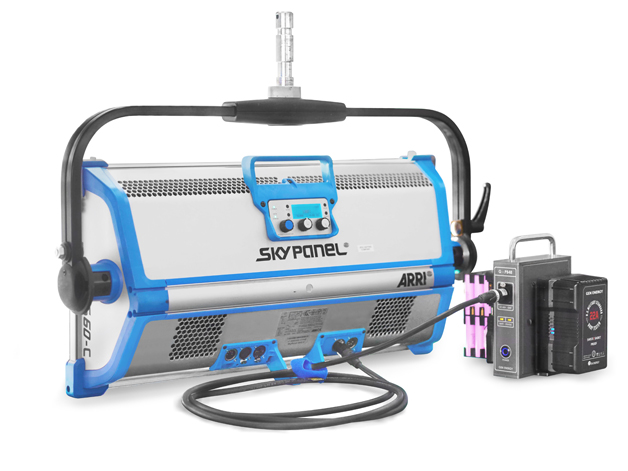

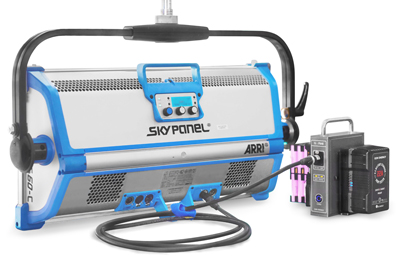

POWER STATIONS

⋅ Power station : Battery packs are hot swappable (G-CB100 only )

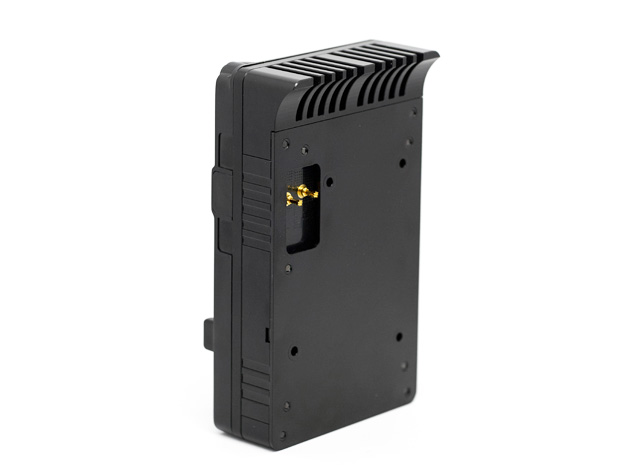

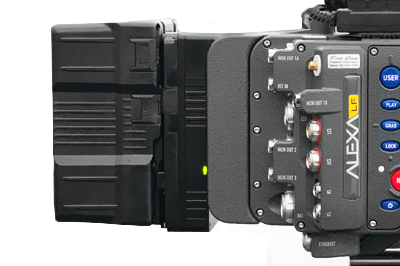

ARRI ALEXA LF CAMERA V-MOUNT PLATE

⋅ Only 1pc of 14.4V battery can make ALEXA LF working with enough power.
⋅ This platemakes voltage step up to 28V with GEN ENERGY 22A power battery and going down like
normal battery to 24V under.
⋅ Body was made of 6pcs of aluminum parts, very strong and fitting with LF body very well.
⋅ Only G-B100/290W 22A can be used together for enough power.
